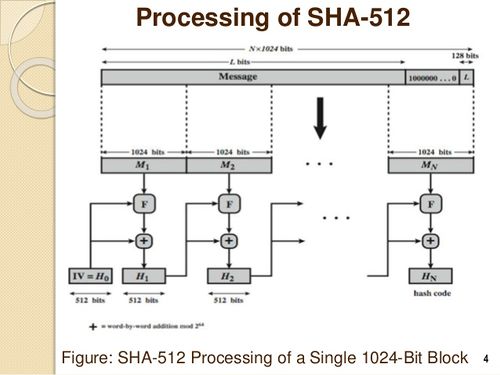

Processing SHA-512

SHA-512 is a function of cryptographic algorithm SHA-2, which is an evolution of famous SHA-1.

SHA-512 is very close to except that it used 1024 bits “blocks”, and accept as input a 2^128 bits maximum length string. SHA-512 also has others algorithmic modifications in comparison with Sha-256.



SHA-512 is identical in structure to SHA-256, but:

  • the message is broken into 1024-bit chunks,
  • the initial hash values and round constants are extended to 64 bits,
  • there are 80 rounds instead of 64,
  • the message schedule array has 80 – 64-bit words instead of 64 – 32-bit words,
  • to extend the message schedule array w, the loop is from 16 to 79 instead of from 16 to 63,
  • the round constants are based on the first 80 primes 2..409,
  • the word size used for calculations is 64 bits long,
  • the appended length of the message (before pre-processing), in bits, is a 128-bit big-endian integer, and
  • the shift and rotate amounts used are different.
SHA-512 initial hash values (in big-endian): h[0..7] := 0x6a09e667f3bcc908, 0xbb67ae8584caa73b, 0x3c6ef372fe94f82b, 0xa54ff53a5f1d36f1,            0x510e527fade682d1, 0x9b05688c2b3e6c1f, 0x1f83d9abfb41bd6b, 0x5be0cd19137e2179 SHA-512 round constants: k[0..79] := [ 0x428a2f98d728ae22, 0x7137449123ef65cd, 0xb5c0fbcfec4d3b2f, 0xe9b5dba58189dbbc, 0x3956c25bf348b538,               0x59f111f1b605d019, 0x923f82a4af194f9b, 0xab1c5ed5da6d8118, 0xd807aa98a3030242, 0x12835b0145706fbe,               0x243185be4ee4b28c, 0x550c7dc3d5ffb4e2, 0x72be5d74f27b896f, 0x80deb1fe3b1696b1, 0x9bdc06a725c71235,               0xc19bf174cf692694, 0xe49b69c19ef14ad2, 0xefbe4786384f25e3, 0x0fc19dc68b8cd5b5, 0x240ca1cc77ac9c65,               0x2de92c6f592b0275, 0x4a7484aa6ea6e483, 0x5cb0a9dcbd41fbd4, 0x76f988da831153b5, 0x983e5152ee66dfab,               0xa831c66d2db43210, 0xb00327c898fb213f, 0xbf597fc7beef0ee4, 0xc6e00bf33da88fc2, 0xd5a79147930aa725,               0x06ca6351e003826f, 0x142929670a0e6e70, 0x27b70a8546d22ffc, 0x2e1b21385c26c926, 0x4d2c6dfc5ac42aed,               0x53380d139d95b3df, 0x650a73548baf63de, 0x766a0abb3c77b2a8, 0x81c2c92e47edaee6, 0x92722c851482353b,               0xa2bfe8a14cf10364, 0xa81a664bbc423001, 0xc24b8b70d0f89791, 0xc76c51a30654be30, 0xd192e819d6ef5218,               0xd69906245565a910, 0xf40e35855771202a, 0x106aa07032bbd1b8, 0x19a4c116b8d2d0c8, 0x1e376c085141ab53,               0x2748774cdf8eeb99, 0x34b0bcb5e19b48a8, 0x391c0cb3c5c95a63, 0x4ed8aa4ae3418acb, 0x5b9cca4f7763e373,               0x682e6ff3d6b2b8a3, 0x748f82ee5defb2fc, 0x78a5636f43172f60, 0x84c87814a1f0ab72, 0x8cc702081a6439ec,               0x90befffa23631e28, 0xa4506cebde82bde9, 0xbef9a3f7b2c67915, 0xc67178f2e372532b, 0xca273eceea26619c,               0xd186b8c721c0c207, 0xeada7dd6cde0eb1e, 0xf57d4f7fee6ed178, 0x06f067aa72176fba, 0x0a637dc5a2c898a6,               0x113f9804bef90dae, 0x1b710b35131c471b, 0x28db77f523047d84, 0x32caab7b40c72493, 0x3c9ebe0a15c9bebc,               0x431d67c49c100d4c, 0x4cc5d4becb3e42b6, 0x597f299cfc657e2a, 0x5fcb6fab3ad6faec, 0x6c44198c4a475817] SHA-512 Sum & Sigma: S0 := (a rightrotate 28) xor (a rightrotate 34) xor (a rightrotate 39) S1 := (e rightrotate 14) xor (e rightrotate 18) xor (e rightrotate 41) s0 := (w[i-15] rightrotate 1) xor (w[i-15] rightrotate 8) xor (w[i-15] rightshift 7) s1 := (w[i-2] rightrotate 19) xor (w[i-2] rightrotate 61) xor (w[i-2] rightshift 6)


SHA-512(“The quick brown fox jumps over the lazy dog”)

= 07E547D9 586F6A73 F73FBAC0 435ED769 51218FB7 D0C8D788 A309D785 436BBB64   2E93A252 A954F239 12547D1E 8A3B5ED6 E1BFD709 7821233F A0538F3D B854FEE6


SHA-512/t is identical to SHA-512 except that:

  • the initial hash values h0 through h7 are given by the SHA-512/t IV generation function,
  • the output is constructed by truncating the concatenation of h0 through h7 at t bits,
  • t equal to 384 is not allowed, instead SHA-384 should be used as specified, and
  • t values 224 and 256 are especially mentioned as approved.

The SHA-512/t IV generation function evaluates a modified SHA-512 on the ASCII string “SHA-512/t”, substituted with the decimal representation of t. The modified SHA-512 is the same as SHA-512 except its initial values h0 through h7 have each been XORed with the hexadecimal constant 0xa5a5a5a5a5a5a5a5.
